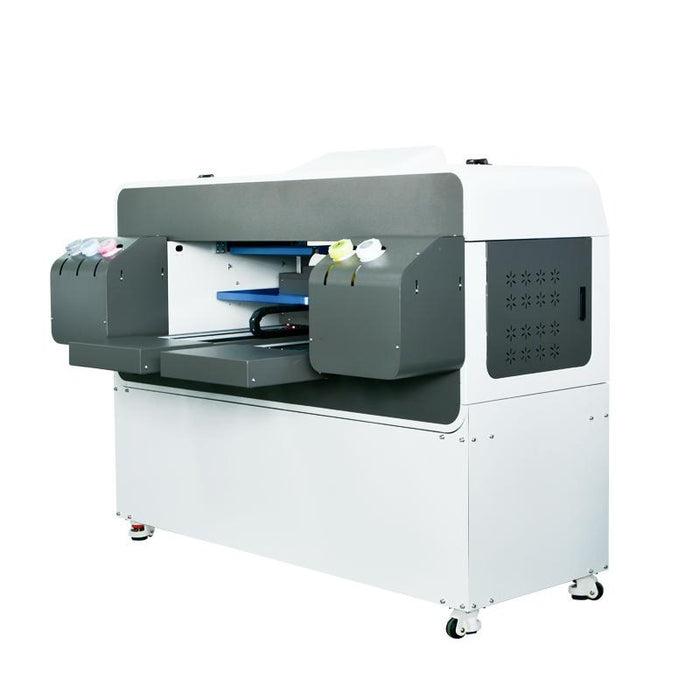

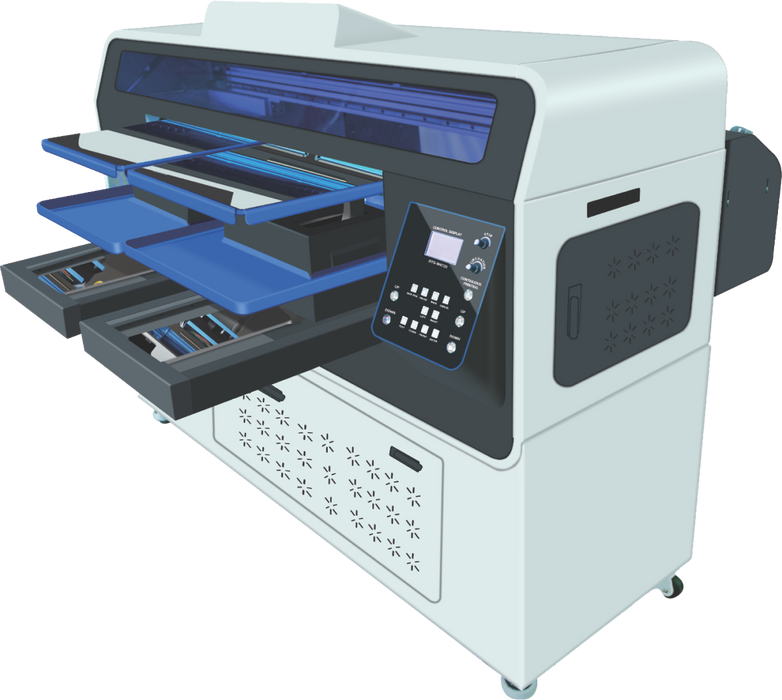

DTGTEX X5
DTGTEX printers are designed to bring you the best features to improve your productivity, quality, and consistency with every job. Our new Epson I3200 printhead technology resistant to clogging are warranted for one year, gives you the stability you seek in a DTG printer. A lot of specs make this printer apart from similar printers in the market. The ability to having two heads that print simultaneously brings you a new level of performance and speed; a new designed White ink circulating system avoids any ink sedimentation and ensures the long life of the printheads; a Bulk system that helps save on ink cost and therefore lower your ink consumption and cost of printing, elevating, therefore, your profitability; a rigid and robust construction in all-metal using the best components will enable you to print for years to come.
|
Specifications |
|
|
Printer model |
DTGTEX X5 |
|
Printing technology |
Two (2) Epson TFT Printheads |
|
Ink |
Textile pigment ink |
|
Color |
Double 4 color: CMYK+CMYK; 5 color：CMYK+White |
|
Maximum print range |
Dual Bases for Max. Output of 400mm*500mm (15.75"x19.68") |
|
Ink supply system |
Closed-loop ink supply system, white ink circulation system, white ink stirring system, white/color independent cleaning system |
|
Print material |
100% cotton, high cotton blend |
|
Included Bases |
Small 250x300mm (9.84"x11.81"), Medium 350x400m (13.78"x15.75"), and Large 400x500mm (15.75"x19.68") |
|
Support image format |
PNG/JPG/TIFF/BMP |
|
Printing resolution |
4 Pass-1800dpi/ 6 Pass-2400dpi/ 8 Pass-3600dpi |
|
System Support |
WINDOWS2000/XP/7/10 |
|
Power |
50W Working power 200W standby power 50W |
|
Best working environment |
Temperature: 22-30℃ Humidity: 40-60% |
|
Output Interface |
USB2.0 |
|
Power supply |
AC110-240VAC,50/60Hz |
|
Size |
1590 mm x 1382 mm x 1280mm (62.59" x 54.4" x 50.39") |
|
Weight |
260 KG (573 Lbs) |
|
Fixing condition |
Conveyor oven (recommended): 160℃ 3.5 minutes Or heat press: 165℃for 50 seconds; The fixing temperature and time vary depending on the machine |
|
Pretreatment |
Pre-processing must be performed when printing with white ink. After applying with a roller or preprocessor before printing, it must be dried using a heat press. |
|
CATALOG |
DOWNLOAD HERE |
