INSTA 728

The Answer to Your Increasing Production Demands

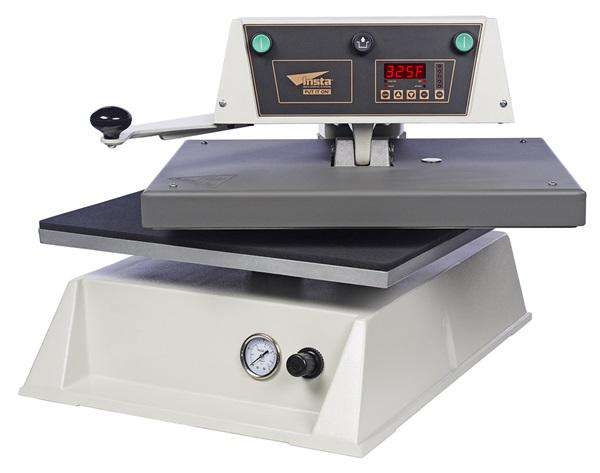

The Insta 728 is an Automatic Swingaway heat press with a 15”x20” platen. This machine is work-horse and renowned for being one of the most reliable and durable heat presses available. Since it is a pneumatic heat transfer machine, its air-driven operation prevents operator fatigue and promotes consistent production speeds. The Insta 728 is used globally, by contractors for many of the world’s leading clothing brands because of its fast recovery, accurate temperature, even pressure and its ability to generate consistent results under 24/7 use.

Quality You Can Count On.

The Insta 728 has been technically designed to produce and evenly distribute controlled pressure throughout its platens. Its cast-in tubular heating element heats the metal from within, producing constant and long-lasting heat. A successful heat transfer application requires perfect time, temperature and pressure – 3 key components needed to work together in harmony. The Insta 728 has mastered those elements and gets the job done every time.

• 15” x 20” platen
• Easy front access to the pneumatic pressure control
• Easy access swing away design
• Accessory Platens: 6”x 6”, 6” x 9”, 6” x 15”, 10” x 15”
• Five programmable presets & cycle counter
• Energy saving auto-off and sleep mode
• Made in the USA.

Insta Design Advantages.

Consistent Results

When you invest in an Insta 728 you are guaranteed to get superior results and increased efficiencies from our accurate temperature, even pressure, and rapid heat recovery.

Central Pressure Source

The pressure source is strategically placed over the center of the upper platen and uses struts to drive that pressure out to all corners. The result is an even and heavy duty distribution of pressure that is unmatched by other heat presses in the market today.

Cast-In Heating Element

The tubular heating element is cast into the aluminum upper platen, heating the metal from within. The element is coiled throughout the upper platen to provide a reliable and even circulation of heat out to all corners.

Integrated Digital Controller

Which features controls for time, temperature (Fahrenheit or Centigrade) & auto-off operation.

Operator Benefits.

Industry Workhorse The Insta 728 is considered the most reliable and durable heat press on the market.

Increased efficiencies with five programmable presets.

Save energy with auto-off and sleep mode.

Convenient front access to pneumatic pressure control.

Easy access with swing away platen.

Solid as a Rock Construction.

Best possible return on your investment Machines made from cast metal is considered to be the highest quality and are strong enough to withstand heavy use without warping or bending. The Insta 728 is extremely durable and, if cared for properly, can last for many years to come. Step up to an Insta & you will be glad you did!.

Working Space Dimensions.

Depth: 29.88” (75.9 cm)

Width: 33.13” (84.1 cm)

Height: 26” (66 cm)

Power: 120 volt - 1750 Watts, 14.6 Amps / 230 volt – 2200 Watts, 9.6 Amps

Shipping Weight: 180 lbs. (81.6 kilos)
